When the E46 3 Sequence first arrived, its four-cylinder petrol engines relied on the growing old M43—a easy, eight-valve design that left the 316i and 318i feeling underpowered in comparison with the six-cylinder fashions. That modified in 2001 with the introduction of the BMW N42, a contemporary 16-valve engine out there in 1.8- and a pair of.0-liter types. Energy rose by greater than 20 horsepower over the M43, torque elevated meaningfully, and the transformation for on a regular basis E46 models was instantly noticeable. For the primary time in years, a four-cylinder 3 Sequence felt genuinely vigorous.

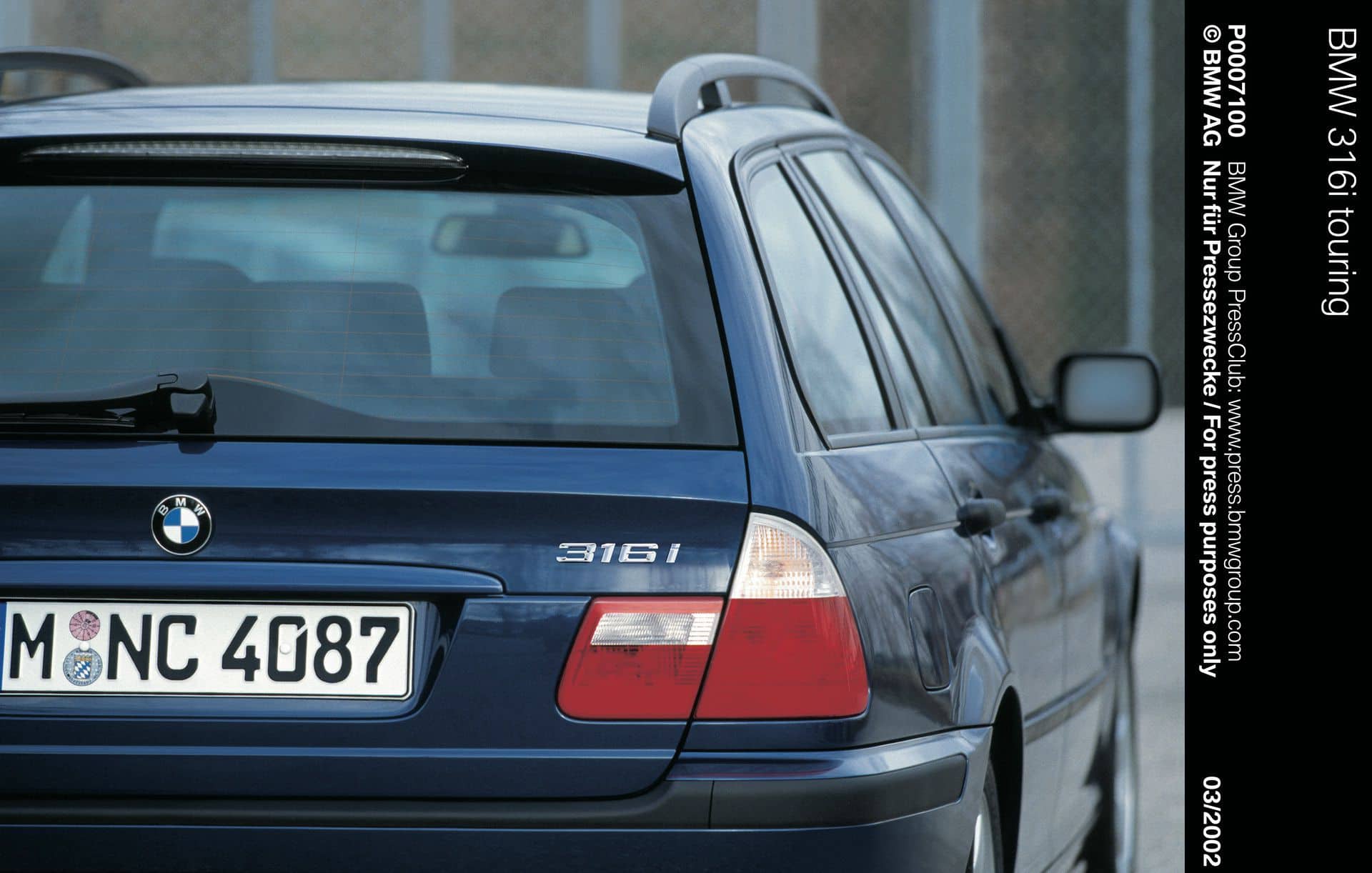

The N42 stayed in manufacturing till 2004 and was used solely within the E46, powering the 316i, 318i, 318Ci, and 318ti Compact. It additionally launched one in every of BMW’s most necessary fashionable applied sciences—Valvetronic—which continues to form BMW engines to this present day. However as with many transitional designs, innovation got here with compromises.
Engine Overview
The N42 represented a significant step ahead in BMW’s four-cylinder improvement. Its aluminum block, 16-valve cylinder head, double VANOS timing, and variable intake-runner DISA system made it considerably extra superior than its predecessor. BMW claimed roughly a ten % enchancment in effectivity at half throttle, thanks largely to Valvetronic’s capacity to manage consumption air with no conventional throttle plate.
Two variations have been supplied:
N42B18
- 113 hp @ 5,500 rpm
- 129 lb-ft @ 3,750 rpm
- Bore × stroke: 84.0 × 81.0 mm
N42B20
- 140 hp @ 6,000 rpm
- 147 lb-ft @ 3,750 rpm
- Bore × stroke: 84.0 × 90.0 mm
Each variants used chain-driven camshafts, weighed roughly 100 kg, and integrated BMW’s Bosch ME9.2 engine administration system to coordinate Valvetronic, VANOS, DISA, ignition, and fueling. This was one of many busiest ECUs BMW had ever deployed on the time.
Design and Expertise
Valvetronic is the N42’s defining characteristic. As an alternative of controlling airflow with a throttle plate, the system varies the carry of the consumption valves utilizing a further eccentric shaft mounted above the consumption camshaft. An electrical stepper motor rotates this shaft through a worm gear, altering the place of the finger followers and thereby adjusting valve carry constantly from near-zero to totally open.
This method reduces pumping losses and improves throttle response. Underneath most situations, the standard throttle physique stays absolutely open and is used solely throughout chilly begins to generate preliminary vacuum or as an emergency backup if the Valvetronic motor fails.
Valvetronic works alongside double VANOS and the DISA variable-length consumption manifold. Collectively, the methods optimize airflow, cam timing, and consumption path size throughout the rev vary. The trade-off is complexity: a vacuum pump should be added as a result of the consumption manifold not supplies pure vacuum, and the extra {hardware} will increase engine weight in comparison with less complicated predecessors.
BMW finally outfitted almost all naturally aspirated engines with Valvetronic, however its introduction in high-revving ///M fashions was delayed as a consequence of lift-control limitations at very excessive RPM. Curiously, across the similar time, BMW briefly experimented with camless solenoid-operated valves, however the know-how couldn’t obtain a suitable redline.
Reliability
The N42 may be dependable with cautious upkeep, however it’s also one in every of BMW’s extra maintenance-sensitive four-cylinder engines. Its points are properly documented, starting with the timing chain system. Early engines used a tensioner piston that was too quick, which allowed extreme slack within the chain and accelerated put on of the chain, guides, and sprockets. BMW later launched a revised, longer tensioner that needs to be fitted to any engine nonetheless working the unique half. A rattling sound on chilly begins is a traditional early warning signal. Left unresolved, the chain can skip enamel and severely injury the engine.
Oil leaks are frequent as properly. Spark plug tube seals, VANOS seals, and the vacuum pump can all start to seep with age. These points hardly ever trigger quick failures however contribute to grease loss and contamination.
Extra severe is the crankcase air flow system (CCV), which might clog—particularly in chilly climates or automobiles used for frequent quick journeys. Signs embrace tough idle, excessive oil consumption, onerous chilly begins, stalling, and weak low-RPM efficiency. BMW affords an insulated CCV for chilly areas, however alternative nonetheless requires eradicating the consumption manifold, which is labor-intensive.
Valvetronic introduces extra factors of failure. The eccentric shaft sensor and Valvetronic motor could cause erratic habits once they degrade. Whereas alternative restores regular operate, entry may be difficult, and analysis isn’t all the time easy.
Regardless of all of this, many well-maintained N42 engines exceed 200,000 km. The hot button is proactive service—common oil modifications, well timed CCV alternative, cooling system consideration, and addressing timing chain signs early.
Effectivity
The N42 delivered one of many largest effectivity positive factors of any BMW engine transition within the early 2000s. Because of Valvetronic, pumping losses have been considerably lowered, permitting the engine to function extra effectively at partial throttle. BMW’s claimed 10 % enchancment was real looking in on a regular basis driving.
On the freeway, the N42 is genuinely environment friendly, typically returning leads to the mid-6 to low-7 L/100 km vary. Round city or when pushed enthusiastically, consumption rises rapidly. Its greatest effectivity happens throughout steady-state cruising, the place the variable valve carry system works most successfully.
Tuning
The N42 shouldn’t be a tuning-friendly engine, and expectations ought to stay real looking. An ECU remap supplies marginal positive factors—usually round 5 to 10 horsepower—and improves throttle response. Supporting modifications equivalent to a higher-flow exhaust or consumption might sharpen character however do little for peak output.
The engine’s structure makes extra aggressive modifications impractical. Valvetronic complicates camshaft upgrades, and forced-induction initiatives rapidly develop into cost-prohibitive in comparison with merely beginning with a six-cylinder BMW. Probably the most significant enhancements aren’t power-related in any respect however quite drivability enhancements, equivalent to a lighter flywheel or shorter differential ratio.
In brief: tuning can improve really feel, nevertheless it received’t remodel the engine.
Execs and Cons
Execs
The N42 launched fashionable BMW applied sciences that also outline the model’s engine philosophy. It considerably improved the efficiency of entry-level E46 fashions and delivered good effectivity for its period. Its lighter weight in comparison with six-cylinders improves front-end agility, and N42-powered E46 fashions stay an accessible entry level into traditional BMW possession.
Cons
The engine’s complexity makes it extra demanding than a lot of its contemporaries. Timing chain points, CCV failures, oil leaks, and Valvetronic-related issues can develop into costly if uncared for. Tuning potential is extraordinarily restricted, and alternative of sure elements—notably the CCV—requires substantial labor. Many examples in the marketplace at present endure from deferred upkeep.
A Good Engine?
The BMW N42 represents a pivotal shift in BMW’s four-cylinder philosophy. It introduced superior applied sciences equivalent to Valvetronic into mainstream fashions and considerably improved the efficiency and effectivity of the E46 316i and 318i. Nevertheless it additionally highlighted the challenges of introducing complexity into engines that may see commuter use and restricted upkeep.
For consumers who perceive its wants and worth a responsive, environment friendly, and light-weight four-cylinder BMW, the N42 stays a compelling engine—offered it has a wholesome upkeep historical past and receives continued consideration. Handled correctly, it may be a rewarding and interesting a part of early-2000s BMW possession. Uncared for, it turns into one of many extra demanding engines of its time.
